High Voltage Wire
High Voltage Wire

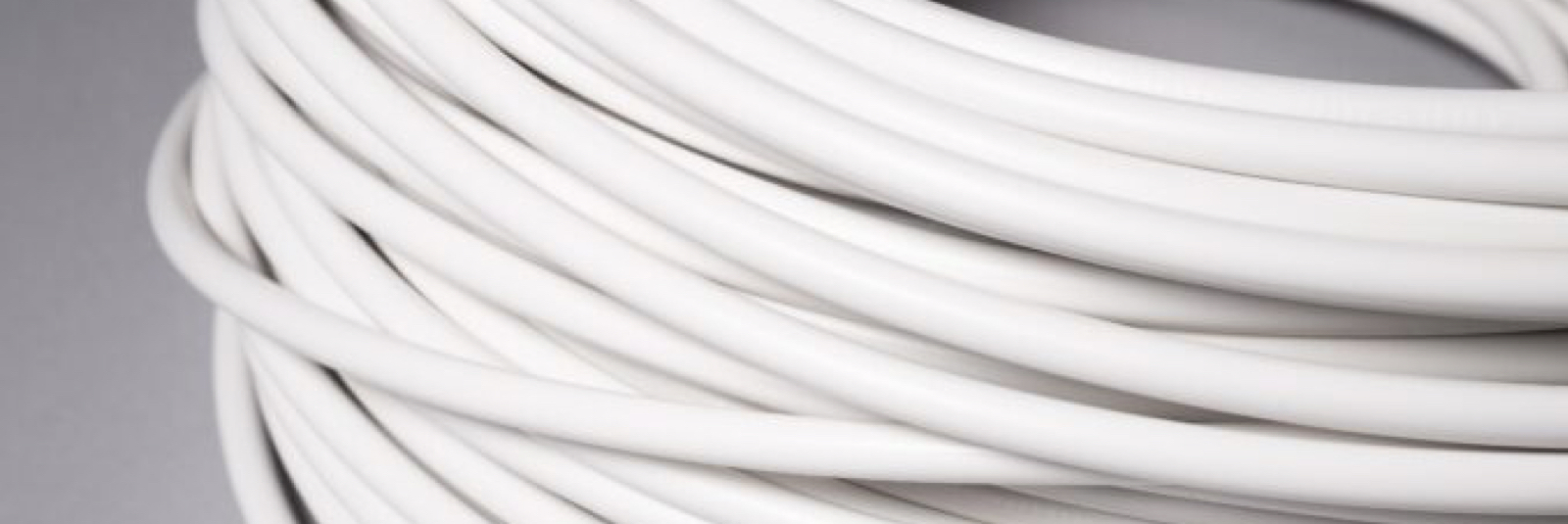

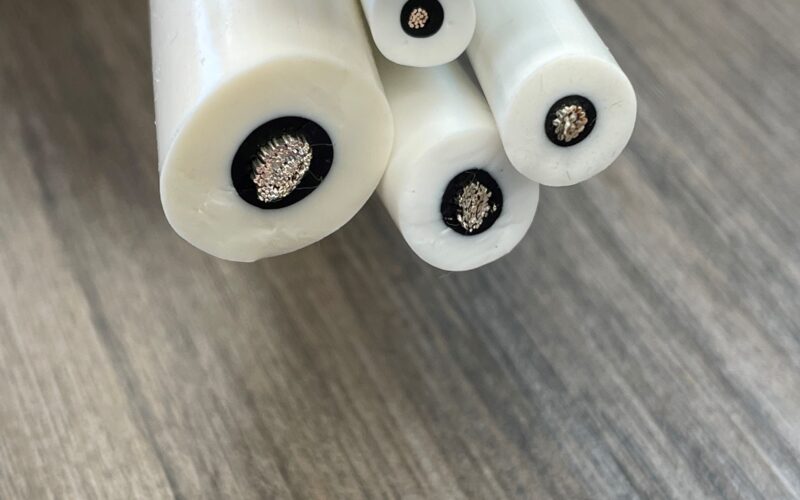

Caton’s wide range of high-voltage silicone wire is offered in multiple sizes and configurations to meet your application. The silicone dielectric maintains excellent flexibility over an extreme temperature range and is resistant against radiation, moisture, and weathering. Being compatible with most silicone encapsulation materials, this wire makes an excellent choice for most high-voltage terminations.
General Specifications
| 1.0 Electrical | |
| 1.1 Operating Voltage | 15-80 kVDC |
| 1.2 Corona Resistant | Semi-conductive Silicone Layer |
| 2.0 Materials | |
| 2.1 Dielectric: | Silicone Rubber |
| 2.2 Semi-Conductive: | Silicone |
| 2.3 Conductor: | Tin or Silver Plated Copper |
| 3.0 Environmental | |
| 3.1 Operating Temperature Range: | -55ºC to +125ºC |
