Multi-conductor high voltage connector

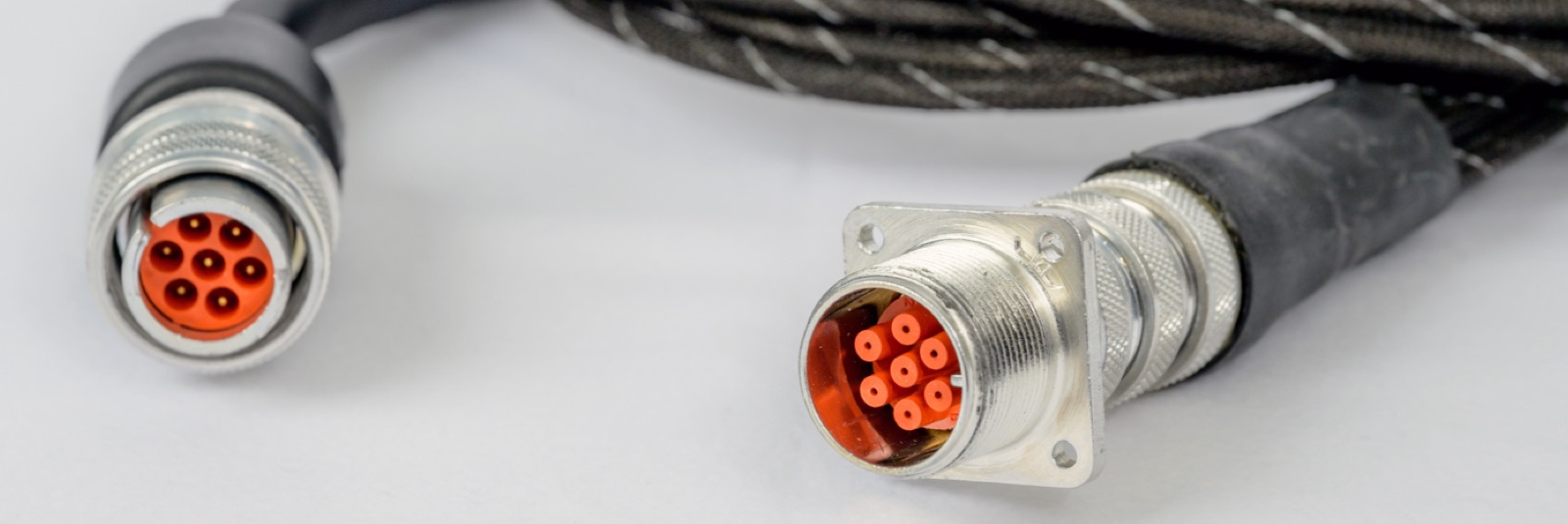

16 Series High-Voltage Connector
General Specifications
| 1.0 Electrical | |
| 1.1 Operating Voltage | 5-50 kVDC |
| 1.2 Current: | 4-85 AMPS |
| 1.3 Corona Resistant: | Tapered Interfacial Seals |
| 2.0 Mechanical | |
| 2.1 Style: | Bulkhead and Inline Screw Coupling |
| 2.2 Termination: | Resilient Silicone Rubber Inserts, Encapsulation Bonded Directly to the Wire |
| 3.0 Environmental | |
| 3.1 Altitude: | Sea Level to 70,000 feet |
| 3.2 Operating Temperature Range: | -55ºC to +125ºC |
| 4.0 Materials | |
| 4.1 Connector Body: | Die Cast Aluminum Per QQ-A-591 |
| 4.2 Shell Plating: | Bright Cadmium Per QQ-P-416, Class 2, Type II** |
| 4.3 Connector Inserts: | Molded Silicone Rubber Per A-A-59588 (ZZ-R-765), Class 2B |
| 4.3.1 Male Insert Molding: | Color Red, Durometer 50 Shore A |
| 4.3.2 Female Insert Molding: | Color Red, Durometer 70 Shore A |
| 4.4 Pin Contact: | Per MIL-C-39029 or 1/2 Hard Brass Per QQ-B-62 |
| 4.5 Socket Contact: | Per MIL-C-39029, QQ-B-626 or ASTM-B196 |
| 4.6 Contact Plating: | Gold Plated Per MIL-G-45204, Class 1, Type II |
| 4.7 Wire: | Tin or Silver Plated Copper, Silicone Insulation |
| 4.8 Cable Shielding: | Braided, Tinned Copper Per A-A-59569 (QQ-B-575) |
| 4.9 Cable Jacket: | Silicone Rubber Per A-A-59588 (ZZ-R-765), Class 2B, Color Black |
Technical Features
- 19 Insert Arrangements
- 10 Shell Sizes
- Voltage Capability 5-50 kVDC
- MIL-C-5015 Aluminum shells available in a variety of finishes and plating’s
- Corona-Resistant Designs
- Low Micro-Discharge Designs
- Amperage ranges from 4 -85A
Applications
- Power Supplies
- Ship Board and Ground Radar
- Laser Equipment
- Satellite NAV Systems
- Land and Airborne Radar Systems
