Single pin High Voltage Connectors

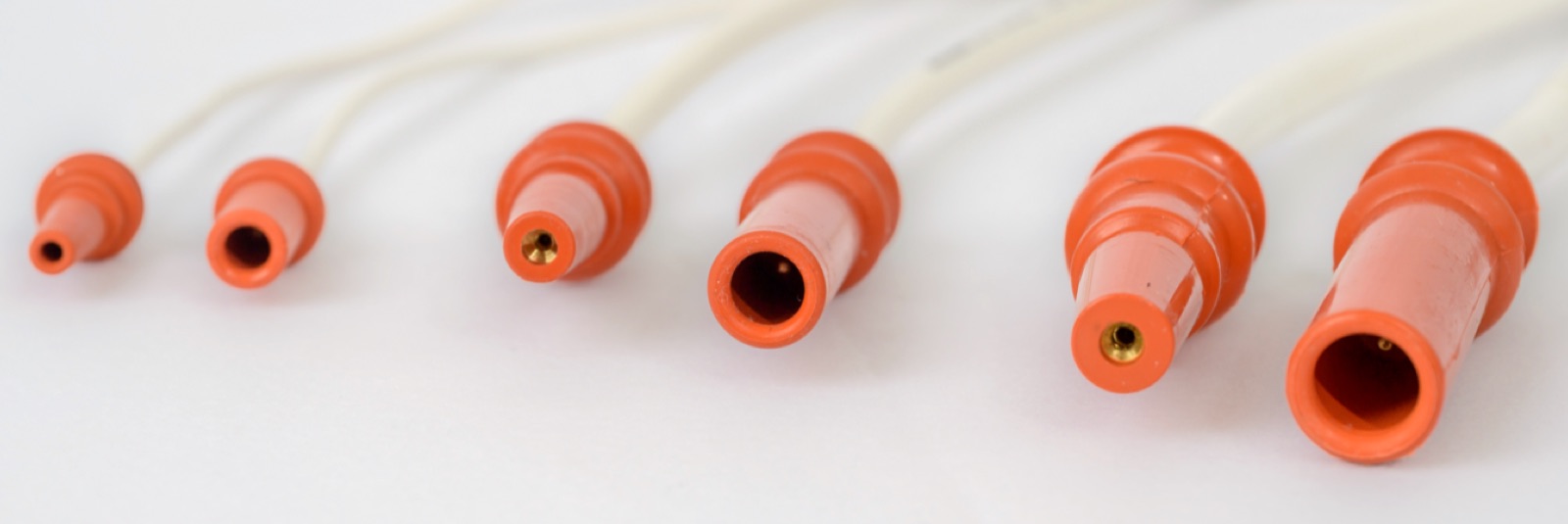

14 Series High Voltage Connector

1.0 Electrical (When Properly Mated)
1.1 Operating Voltage	10-60 kVDC
1.2 Current:	4-10 AMPS
2.0 Mechanical
2.1 Style:	Panel Mount & Finger Grip
2.2 Plug Termination:	Bonded directly to the Cable
3.0 Environmental
3.1 Operating Temperature Range:	-55ºC to +125ºC
4.0 Materials
4.1 Connector Body:	Silicone Rubber per A-A-59588, Class 2B (ZZ-R-765)
4.1.1 Male Connector:	Color Red, Durometer, 70 Shore A
4.1.2 Female Connector:	Color Red, Durometer, 50 Shore A
4.2 Pin Contact:	Hard Brass per QQ-B-626
4.3 Socket Contact:	Beryllium Copper Alloy, Grade M33-25 or M173
4.4. Pin and Socket:	Gold Plated per MIL-G-45204, Class 1, Type II
4.5 Wire:	Tin or Silver Plated Copper, Silicone Insulation10 kVDC, 20 AWG, 0.100 Diameter30 kVDC, 18 AWG, 0.200 Diameter40 kVDC, 16 AWG, 0.295 Diameter

1.0 Electrical
1.1 Operating Voltage	10-50 kVDC
1.2 Current:	6.5-10 AMPS
1.3 Corona Resistant:	Tapered Interfacial Seals
2.0 Mechanical
2.1 Style:	Bulkhead and Inline Screw Coupling
2.2 Termination:	Resilient Silicone Plugs Molded Directly to the Cable
3.0 Environmental
3.1 Altitude:	Sea Level to 70,000 feet*
3.2 Operating Temperature Range:	-55ºC to +125ºC
4.0 Materials
4.1 Connector Body Plug:	Silicone Rubber per A-A-59588 (ZZ-R-765), Class 2B, Color; Red, Durometer; 70 Shore A
4.2 Connector Body Receptacle:	Thermoset Diallyl Phthalate Per ASTM D 5948-96 (MIL-M-14), Color; Green
4.3 Unshielded Assemblies
4.3.1 Coupling Rings and Ferrules:	Polycarbonate Per ASTM-D3935 (L-P-393)
4.4 Shielded Assemblies
4.4.1 Coupling Rings and Ferrules:	Hard Brass Per QQ-B-626, Tin Plated Per ASTM B 545 (MIL-T-10727)
4.5 Jam Nut Receptacles:	Hard Brass Per QQ-B-626, Tin Plated Per ASTM B 545 (MIL-T-10727)
4.6 Cable:	Tin or Silver Plated Copper, Silicone Insulation
4.7 Cable Shielding:	Braided Tinned Copper Per A-A-59569 (QQ-B-575)
4.8. Cable Jacket (Shielded Assemblies Only):	Silicone Rubber Per A-A-59588 (ZZ-R-765), Class 2B, Color Black

1.0 Electrical
1.1 Operating Voltage	60 kVDC, 20 kVRMS
1.2 Current:	26 AMPS
1.3 Corona Resistant:	Tapered Interfacial Seals
2.0 Mechanical
2.1 Style:	Bulkhead and Inline Screw Coupling
2.2 Termination:	Resilient Silicone Rubber Insulator Molded Directly to the Cable
3.0 Environmental
3.1 Altitude:	Sea Level to 70,000 feet
3.2 Operating Temperature Range:	-55ºC to +125ºC
4.0 Materials
4.1 Connector Body Plug:	Silicone Rubber per A-A-59588 (ZZ-R-765), Class 2B, Color; Red, Durometer; 70 Shore A
4.2 Connector Body Receptacle:	Thermoset Diallyl Phthalate Per ASTM D 5948-96 (MIL-M-14), Color; Green
4.3 Cable:	Silver Plated Copper, Triple Extruded Silicone Insulation
4.4 Cable Shielding:	Braided Tinned Copper Per A-A-59569 (QQ-B-575)
4.5. Cable Jacket (Shielded Assemblies Only):	Silicone Rubber Per A-A-59588 (ZZ-R-765), Class 2B, Color Black
